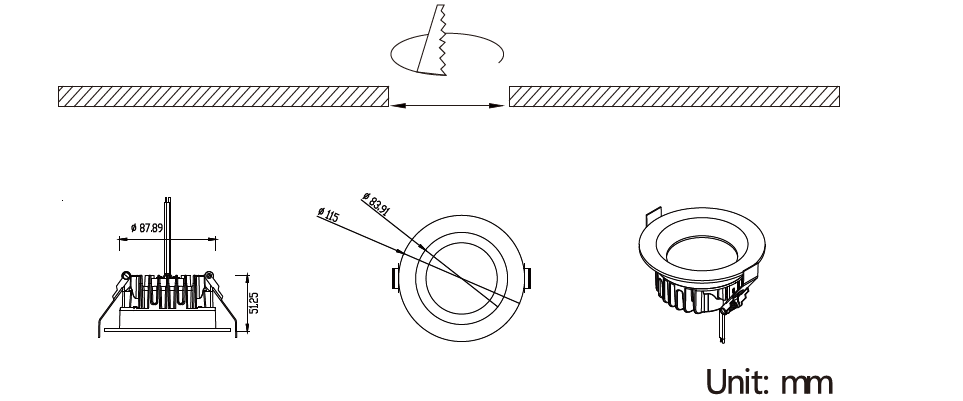

| Reference | Watt | Lumen | Color Temperature | Angle | IP | Dimension (mm) | Cutout (mm) |
|---|---|---|---|---|---|---|---|
| DL01-15-1650-27-100-65 | 15 | 1650 | 2700 | 100 | 65 | 115x51.5 | 90-105 |
| DL01-15-1650-30-100-65 | 15 | 1650 | 3000 | 100 | 65 | 115x51.5 | 90-105 |
| DL01-15-1650-40-100-65 | 15 | 1650 | 4000 | 100 | 65 | 115x51.5 | 90-105 |
| DL01-15-1650-65-100-65 | 15 | 1650 | 6500 | 100 | 65 | 115x51.5 | 90-105 |
DL01 (15W – IP65)

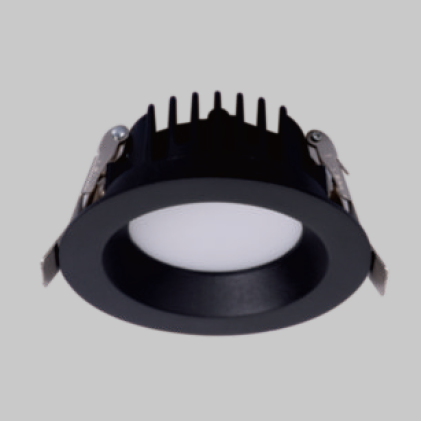

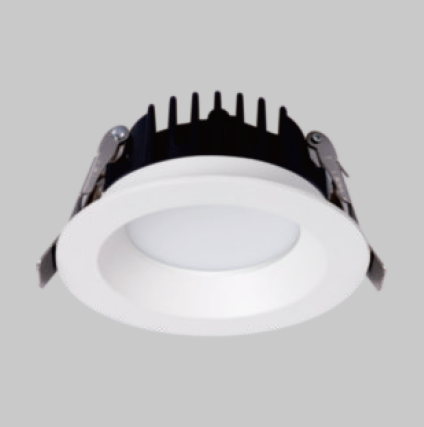

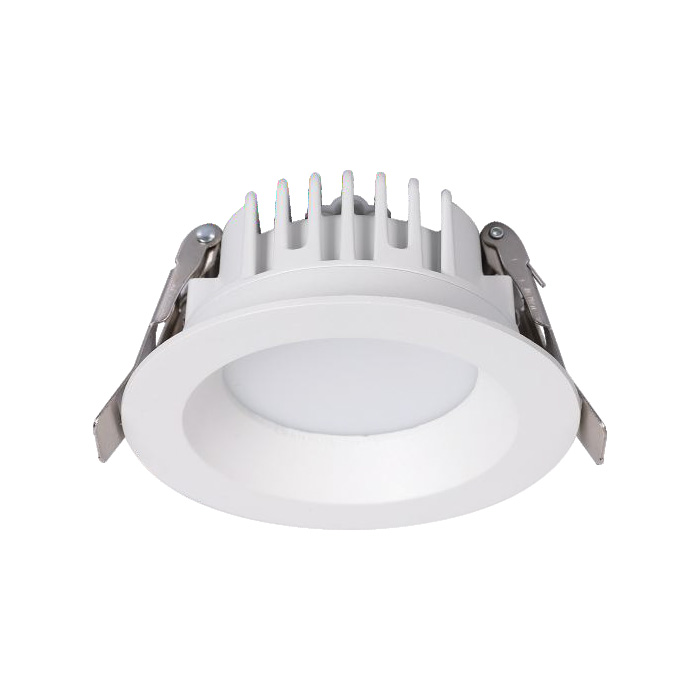

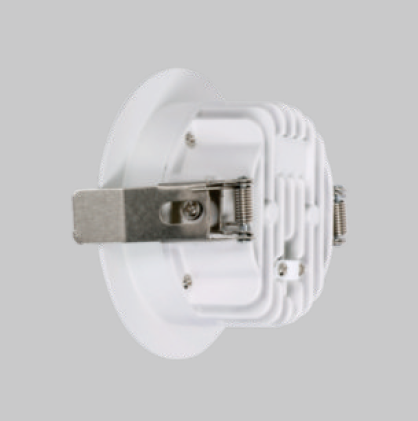

This product is a LED Downlight. Made in die-casting aluminum, trim and heat-sink, PMMA lens.
Constant current remote LED driver included.
For any product Variation required please contact us
| Wattage | 15W |
|---|---|
| CRI | >80, >90 |
| CCT | 2700K, 3000K, 4000K, 6500K |
| Control | DALI, TRIAC, 0-10V, 1-10V |
| IP Rating | IP65 |
| Color | White |
| Optics | Wide |
| Dimmable | Optional |
| Wattage | 15W |
|---|---|
| CRI | >80, >90 |
| CCT | 2700K, 3000K, 4000K, 6500K |
| Control | DALI, TRIAC, 0-10V, 1-10V |
| IP Rating | IP65 |
| Color | White |
| Optics | Wide |
| Dimmable | Optional |
